intelligent gps vehicle tracker mini 4g obd gps tracker read car fault code for fleet management

  • 1 - 199 Pieces
    $80.00
  • 200 - 999 Pieces
    $72.00
  • >=1000 Pieces
    $65.00
Screen Size:
No screen
Color:
Memory Capacity:
None
Report Suspicious Activity
Overview
Quick Details
Type:
Gps Tracker
Use:
Automotive
Function:
GPS chips and communication chips
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BY
Model Number:
BY-A6
Warranty:
1 Years
Contact discharge:
+ 6KV
GSM band:
850MHz/900MHz/1800MHz/1900MHz;UMTS (optional)
GPS channel:
GPS L1 1575.42MHz (GLONASS/BD2 optional)
CAN:
model in line with OBDII/EOBD standard
K/L:
support
Storage environment:
-40℃ --+85℃
Working environment of the whole machine:
temperature -20℃ --+70℃
Humidity:
95% (no visible water) (+40 C), 48 hours
Air discharge:
+ 8KV
Products:
intelligent obd gps vehicle tracker
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month car gps tracker with obd diagnostic data
Packaging & Delivery
Packaging Details
carton
Port
Shenzhen,HongKong

 Anti-theft mini 4g obd gps tracker car diagnostic device read car fault code

Product Description

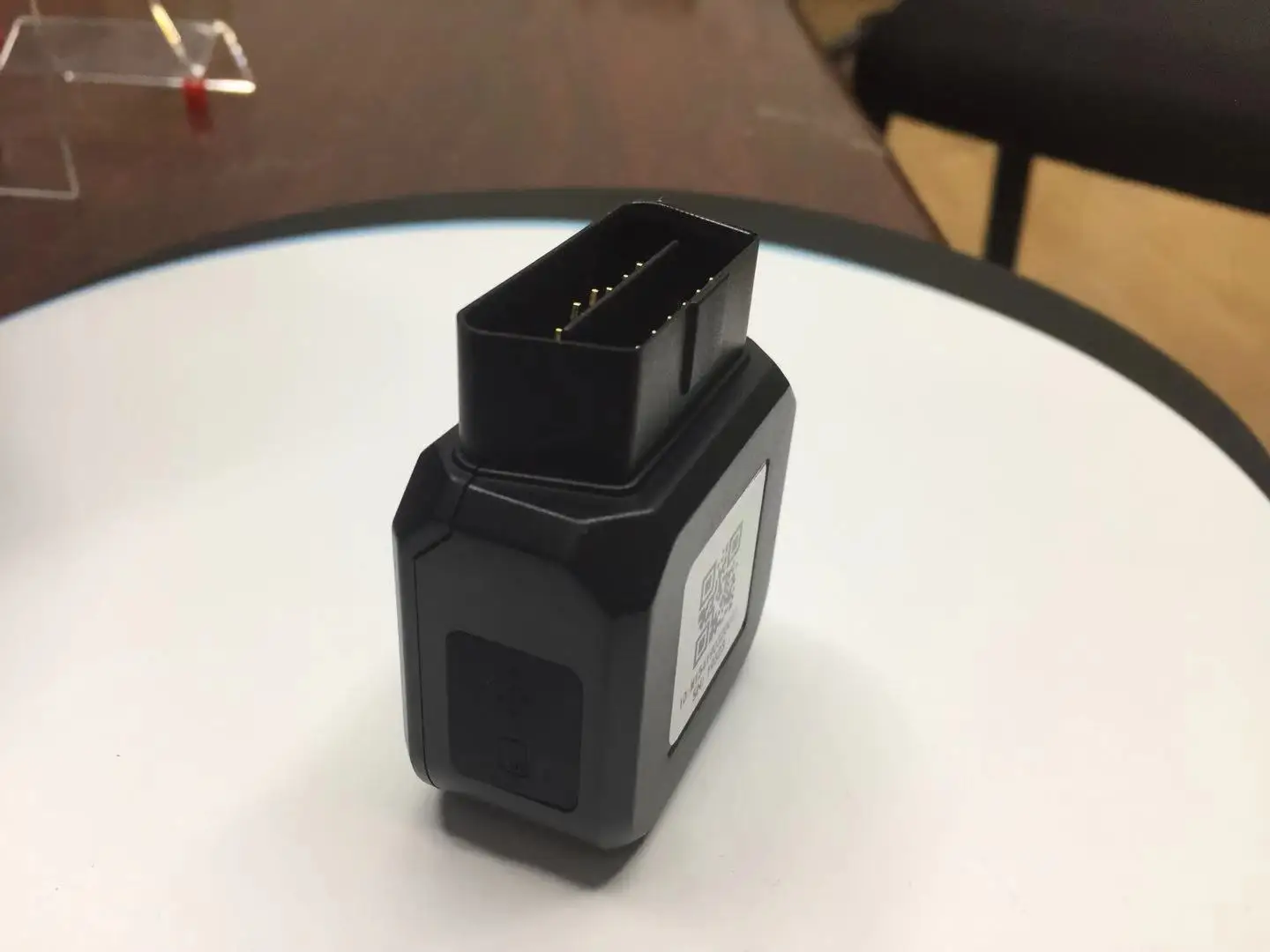

 The BY-A6 is a plug and play OBD terminal .

The Qualcomm 4G communication module, high-precision GPS module, high-performance three-axis gravity sensor and vehicle ECU computer communication module are used. The vehicle running state, vehicle condition data, vehicle fuel consumption data, driver control data, etc. can be uploaded to the vehicle network management cloud platform through the wireless module, and the vehicle management platform realizes through the terminal data, the statistical vehicle trajectory, the driving behavior, the fuel consumption statistics, the anti-theft tracking, and the like. Remote management of the fleet reduces vehicle fuel consumption by regulating driving behavior.
Optional extension cable will be placed on the top of the instrument panel, beautiful appearance.

Support 2G /4G network (Mobile/Unicom)

Positioning track (optional Beidou GPS dual mode

Vehicle breakdown medical examination

Driving behavior data

Remind alarm data

Obtain OBD II standard data

Vehicle VIN

Expandable car private agreement data (meter mileage, remaining fuel, etc.)

Adapt to passenger car commercial vehicles (voltage 9~36V)

Pull out the alarm (optional 110mA)

SIM card external

Support USB serial port (Micro USB, external serial port power supply)



2,Technical  Specifications

Parameter

Specifications

Operating Voltage

9V-36V DC

Average operating current

180mA@12V

Sleeping current

<10mA@12V

Operating temperature

-30℃~+70℃

storage temperature

-40℃~+80℃

positioning accuracy

<10m

GPS frequency range

1575.42MHZ

4G frequency range

FDD-LTE-TDD-LTE: B1/B3/B8/B38/B39/B40/B41

UMTS: B1/B8/1900/2000

GSM: 900/1800MHz

OBD type

support OBDII/EOBD

SIM card

External (Micro card)

4G antenna

Internal

GPS antenna

Internal

WIFI antenna

Internal

USB

1. Serial port: 3.3V TTL level

2. Output voltage: 0V output / 5V output / 12V output (three choices one)

GPS receiver

Cold start time (average)

Receiver type

L1 frequency, C/A Code 50channel

Hot start time (average)

Receiving sensitivity

<-161dB,Typical value

Positioning accuracy

Speed accuracy

<0.1 m/s

Chip model

EC25-E

EC25-AU

Network standard

4G/3G/2G

4G/3G/2G

Area

China / India / Thailand

Europe/Middle East/Africa

Australia/

Korea/Thailand/Singapore

New Zealand / Taiwan / Brazil

Support FDD LTE

B1/B3/B8

B1/B3/B5/

B1/B2/B3/B4/B5/B7

Frequency band

B12

B7/B8/B20

B8/B28

Country TDD LTE

B38/B39/B40/B41

B38/B40/B41

B40

Regional band TDSCDMA

B34/B39

/

/

Replaceable mode WCDMA

B1/B8

B1/B5/B8

B1/B2/B5/

Block model CDMA

BC0

/

/

GSM

900/1800MHz

B3/B8

B2/B3/B5/B8

Receiving sensitivity

LTE B1: -97dBm(20M)

LTE B3: -96dBm(20M)

LTE B5: -99dBm(10M)

LTE B7: -97dBm(20M)

LTE B8: -98dBm(10M)

LTE B20: -96dBm(20M)

UMTS B1: -110dBm

UMTS B5: -112dBm

UMTS B8: -111dBm

GSM 850: -111dBm

GSM 900: -110dBm

GSM 1800: -109dBm

GSM 1900: -109dBm

Engine speed, vehicle speed, engine load, fault status, engine coolant temperature, fuel pressure, intake manifold absolute pressure, engine inlet temperature, air flow rate, solar term door position sensor, when starting the engine running time, fault mileage and residual oil volume, atmospheric pressure, battery voltage, temperature, vehicle the accelerator pedal position, mileage, fuel consumption.


More GPS Tracker

More GPS Tracker

Click Below Pictures Learn More Detail



Application



About us



FAQ

FAQ

Q1. Why do we choose bayao Technology?

A1: We promise: All of our products are power regulated. The output voltage
and current are true one. all with good quality and competitive price. We
assure you timely delivery by keeping 80% standard products inventory and
best after-sale service. All have done 100% longtime full-load aging test/
burn-in test before shipment



Q2. What is the applicable range of this product?

A2: We focus on intelligent vehicle terminal for logistics vehicles, private
cars taxis etc



Q3. Can your products pass CE/ROHS certificate?
A3: Yes, our products meet the industrial standards, like: CE/ROHS/CCC



Q4.Accept sample order What is your minimum order quantity?
A4: trial order or sample order is accept, but same cost as bulk



Q5. What are the shipping ways you can offer?
A5: By air/sea according to customers'requirements



Q6. Do your products come with warranty?
A6: Yes, we promise 1-3 year warranty according to different modele print in
the watch dial, case back, crown, buckle and straps for free.
